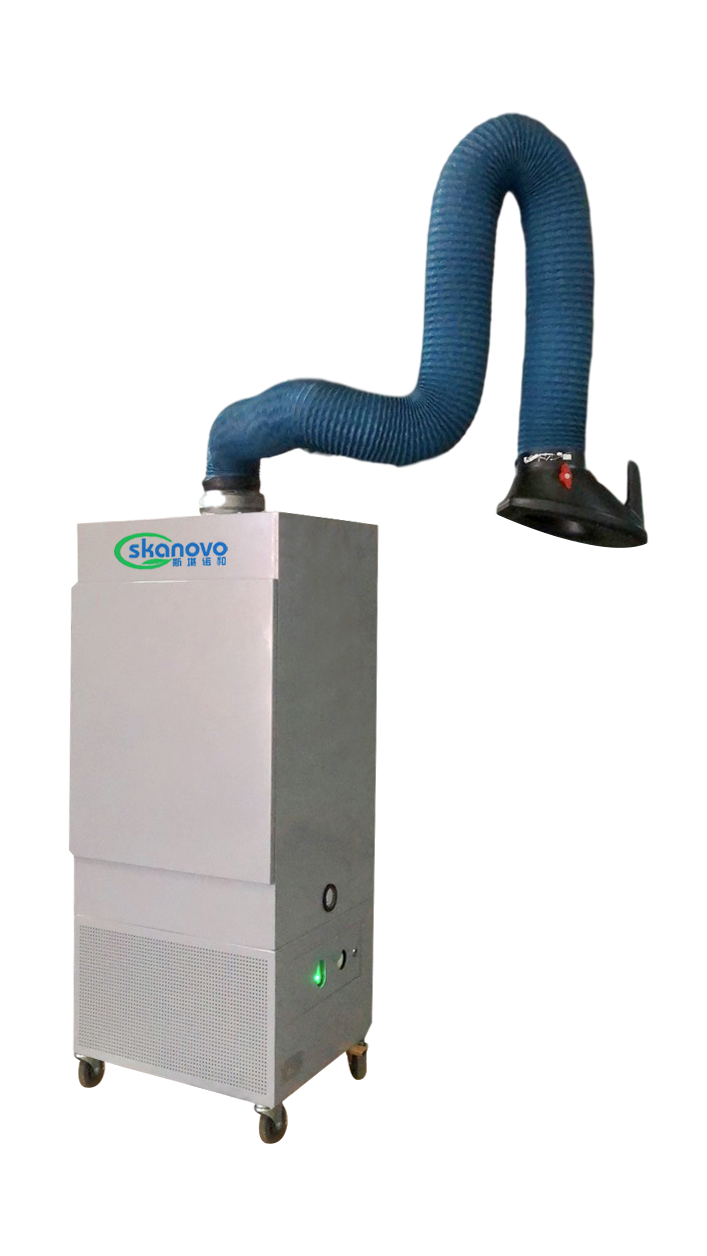

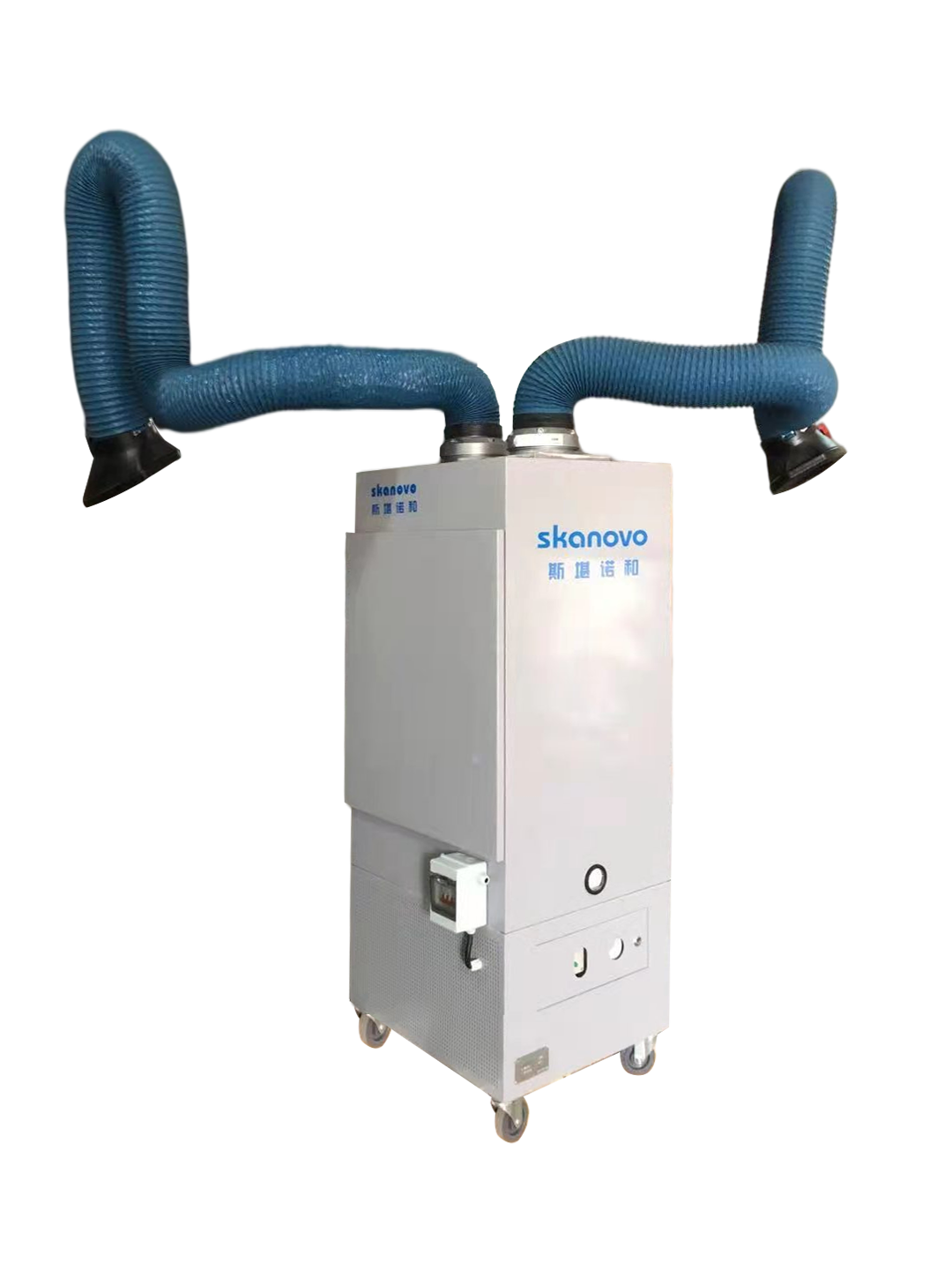

Mobile Molecular Emission Cleaner with Sucking Arms


Model: MEC2000-L
Power1 phase 220V
Rated power: 1,30 kW
Capacity: 0-2000 m3/h
Dimension: 650x650x1900mm
FilterG4, F7, molecular filter, molecular filter

Model: MEC4000-2L
Power3 phase 380V
Rated power: 2,50 kW
Capacity: 0-4000 m3/h
Dimension: 650x650x1900mm
FilterG4, F7, molecular filter, molecular filter

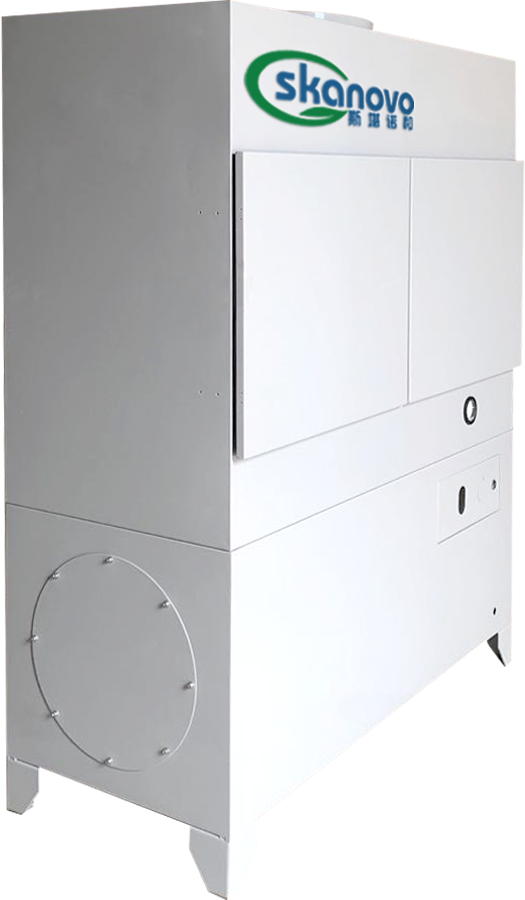

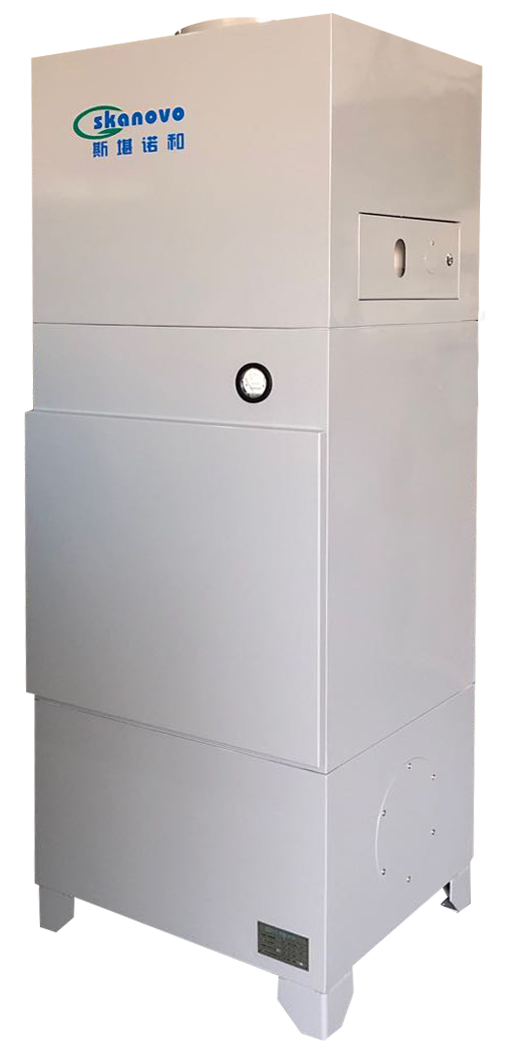

Ducted Molecular Emission Cleaner


Model: MEC3000
Power1 phase 220V
Rated power: 1.30 kW
Capacity0-3000m3/h
Air intake: diameter 200mm
Air output: diameter 350mm
Dimension: 593x695x1903mm
FilterG4, F7, molecular filter, molecular filter

Model: MEC6000
Power3 phase 380V
Rated power: 3,3 kW
Capacity0-6000m3/h
Air intake: diameter 380mm
Air output: diameter 380mm
Dimension: 593x1410x1380mm
FilterG4, F7, molecular filter, molecular filter

Model: MEC10000
Power3 phase 380V
Rated power: 5,6 kW
Capacity0-10000m3/h
Air intake: diameter 500mm
Air output: diameter 500mm
Dimension: 1240x1470x2200mm
FilterG4, F7, molecular filter, molecular filter

Molecular gas purification box

Configured with various chemical molecular filter materials. Can be based on a cartridge type and a horizontal wall type. Skannovo’s chemical filter media includes novokol, novoalu, novoalukmn, novozeolite to effectively remove organic gases and various acid-base inorganic gases. For different polluted gas environments, different filter material combinations are selected. Models include ACB3000, ACB6000, ACB10000, ACB20000.

c1a304fb5839585f7d079428165a2f2f.jpgc2ca18cc95736d1afc285b59c539dc1c 1.jpg

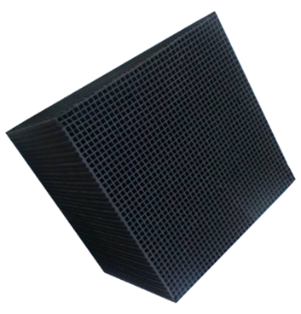

Filter material in a brick form

Activated carbon adsorption mainly uses porous solid adsorbent activated carbon to have adsorption effect, which can effectively adsorb various organic and inorganic waste gas. The activated carbon layer is made of activated carbon bricks, the size is 100x100x100 (mm), and is made into an activated carbon filter element.


Filter material in a cartridge

Filer cartridge can be filled in with various chemical material, which gives good filtration effect and reasonable pressure resistance.
