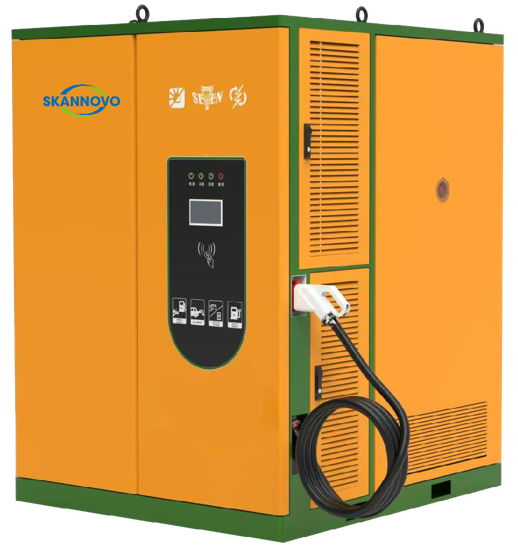

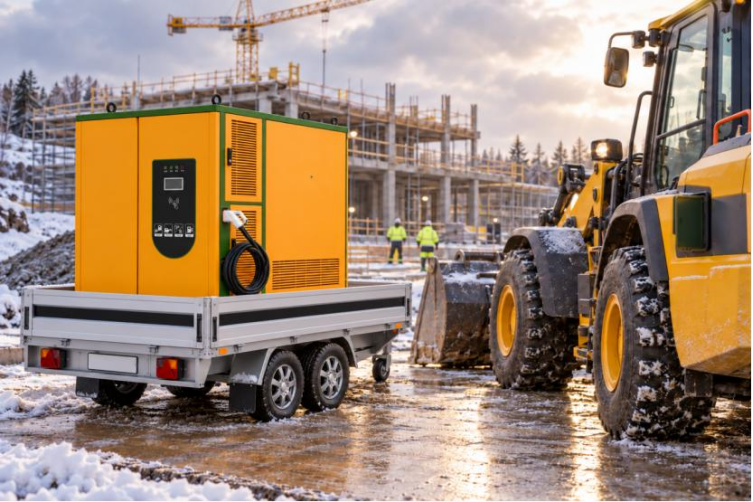

Our mobile power aggregate combines the charging station and the battery energy storage and integrates them into a single unit. It has a light weight and a compact size, and specifically designed and customized according to the Swedish traffic regulation to fit into a mobile usage. It is made for the Nordic weather conditions with very good corrosion protection. It is easier to move around with a fork lift or a crane, and gives strong protection against any possible collision. It is free of installation with good mobility.
The mobile power aggregate can be used with both on grid and off grid modes. This means that it can be either connected to a power grid, or standalone being disconnected from the grid. When it is in the on-grid mode, the power output is the combined sum from both the grid and the battery. This provides a solution for turning a fixed low power connection into a high power connection.
Product models | CA150 | CA250 | CA500 |
Battery capacity | 156kwh | 261kwh | 522kwh |
Rated power | 80kw | 125kw | 250kw |
Depth of discharge | ≤95% | ≤95% | ≤95% |
Cycles | >8000 | >8000 | >8000 |
Cell type | 3.2V/314Ah(LFP) | 3.2V/314Ah(LFP) | 3.2V/314Ah(LFP) |
Input voltage AC | 3~ 400VAC | 3~ 400VAC | 3~ 400VAC |
Input frequency AC | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Installation | mobile | mobile | mobile |
IP rating | IP 54 | IP 54 | IP 54 |
Operating temperature | -35°C ~ +55°C | -35°C ~ +55°C | -35°C ~ +55°C |
Cooling method | liquid cooling | liquid cooling | liquid cooling |
Noise | ≤ 50 dB | ≤ 50 dB | ≤ 50 dB |
Relative humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% |
Network connection | 4G, Wi-Fi, Ethernet | 4G, Wi-Fi, Ethernet | 4G, Wi-Fi, Ethernet |
Enclosure | Cabin | Cabin | Cabin |
Dimension | 1500x1500x1600cm | 1500x1500x2100cm | 1500x2000x3000cm |
Safety and protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection |
Charging connector | CCS2 | CCS2 | CCS2 |
Charging power | 100kw | 160kw | 280kw |
Output voltage for DC | 150~1000VDC | 150~1000VDC | 150~1000VDC |
No of charging pistol | 1 | 1 | 2 |
Cable length | 5 meter | 5 meter | 5 meter |
HMI | 7-inch touch screen | 7-inch touch screen | 7-inch touch screen |
Charging mode | Automatic full, fixed amount, fixed time | Automatic full, fixed amount, fixed time | Automatic full, fixed amount, fixed time |
Payment method | Payment terminal, RFID card, Scan code, APP, VIN code | Payment terminal, RFID card, Scan code, APP, VIN code | Payment terminal, RFID card, Scan code, APP, VIN code |
Communication protocol | OCPP 1.6J | OCPP 1.6J | OCPP 1.6J |
Other features | Visualized charging progress display, Anti-corrosion galvalume housing | Visualized charging progress display, Anti-corrosion galvalume housing | Visualized charging progress display, Anti-corrosion galvalume housing |
