DC Charging Station
80 ~ 180 kW
Product Description
The fast EV charger connects with AC electric grid and provides an advanced charging solution for electrical vehicles and machineries. It comes with various protection mechanisms to ensure safety in the charging process. It provides 4G and Ethernet connectivity and supports OCPP for easy integration into any charging service operator. A color display provides real-time user-friendly charging information.

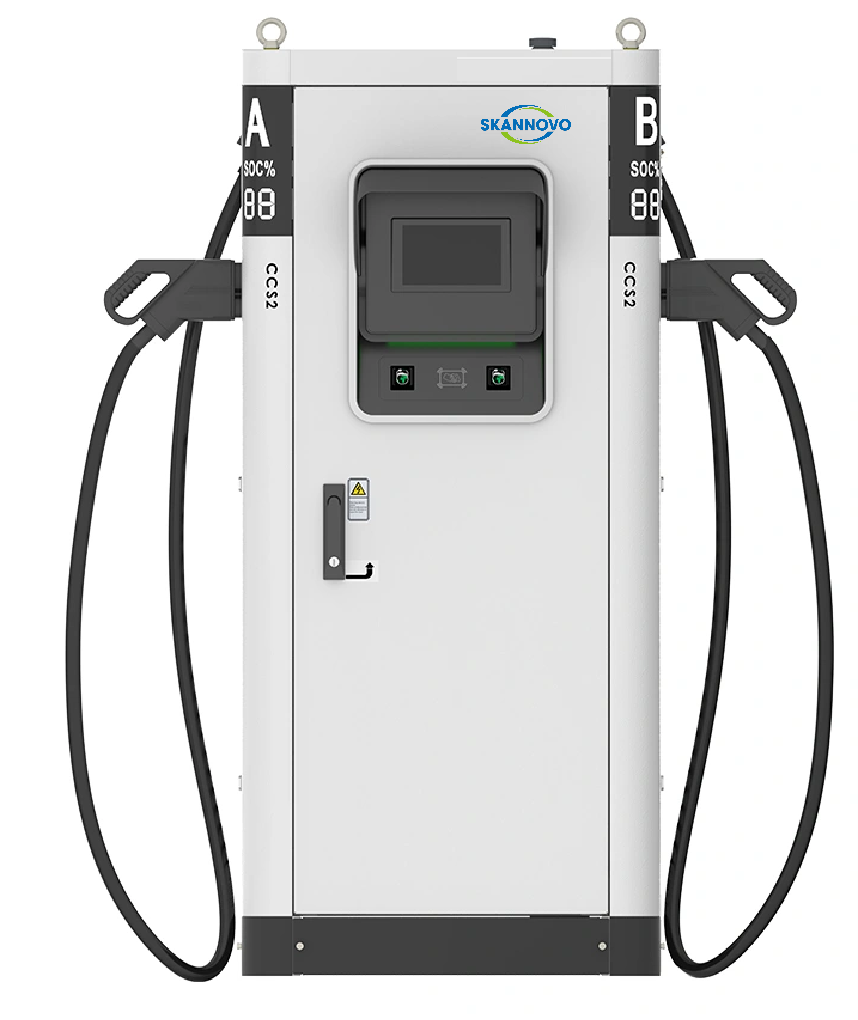

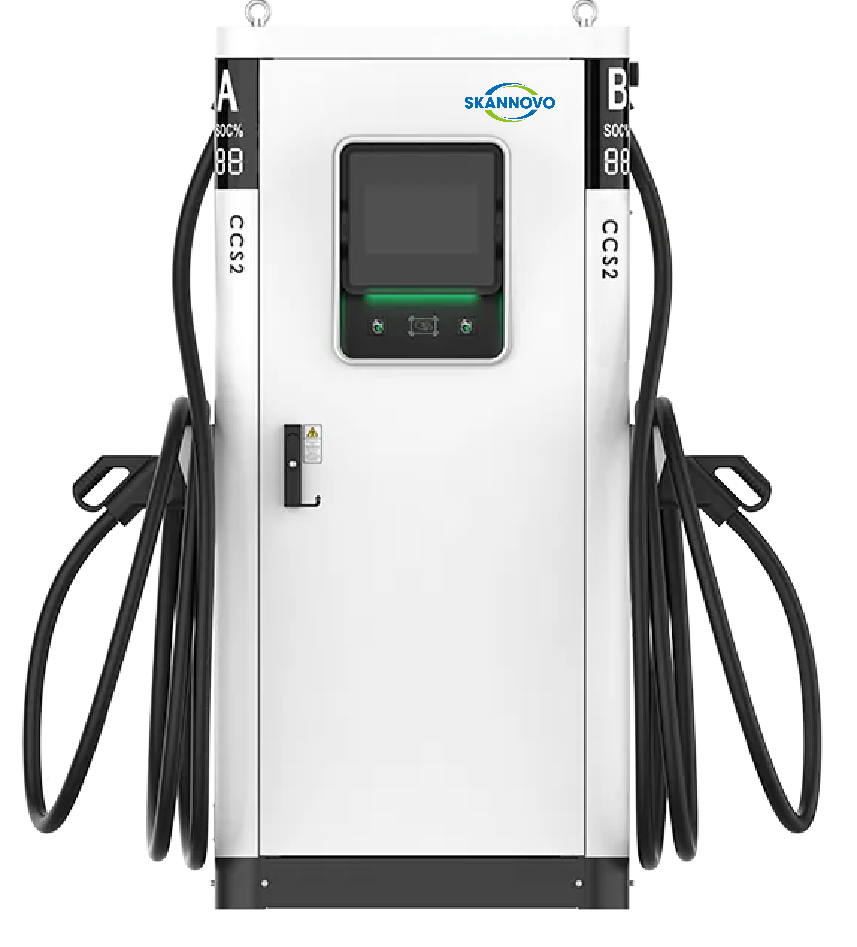

Product Overview
|
|
Technical Specifications
Parameter | Value |
Rated power | 80~180 kW |
Output current | <250A |
Input voltage | 3~ 400VAC |
Input frequency | 50/60 Hz |
Input connector | 3P+1N+1PE |
Output voltage | 150~1000VDC |
No of charging guns | 2 |
Output power per gun | Evenly distributed within, maximum power limiting |
Charging connector type | CCS2 |
Installation | Ground |
HMI | 7-inch touch screen |
Charging options | Automatic full, fixed energy, fixed money, fixed time |
Payment methods | RFID card, Scan code, VIN kod, (Payment terminal is optional) |
Network connection | 4G, (Ethernet is optional) |
Network communication protocol | OCPP 1.6J |
Charging standards | IEC 61851-23, ISO 15118-2 |
IP rating | IP 54 |
Operating temperature | -35°C ~ +55°C |
Cooling method | Air cooling |
Noise | ≤ 70 dB |
Relative humidity | 5% ~ 95% |
Safety and protection | overload protection, short circuit protection, current leakage protection, lightning surge protection, grounding protection, anti-static protection, over and under voltage protection, over and under temperature protection, emergency stop, insulation control |
Cable management | Cable booster on the top |
