DC Charging Station Satellite System
with DC input

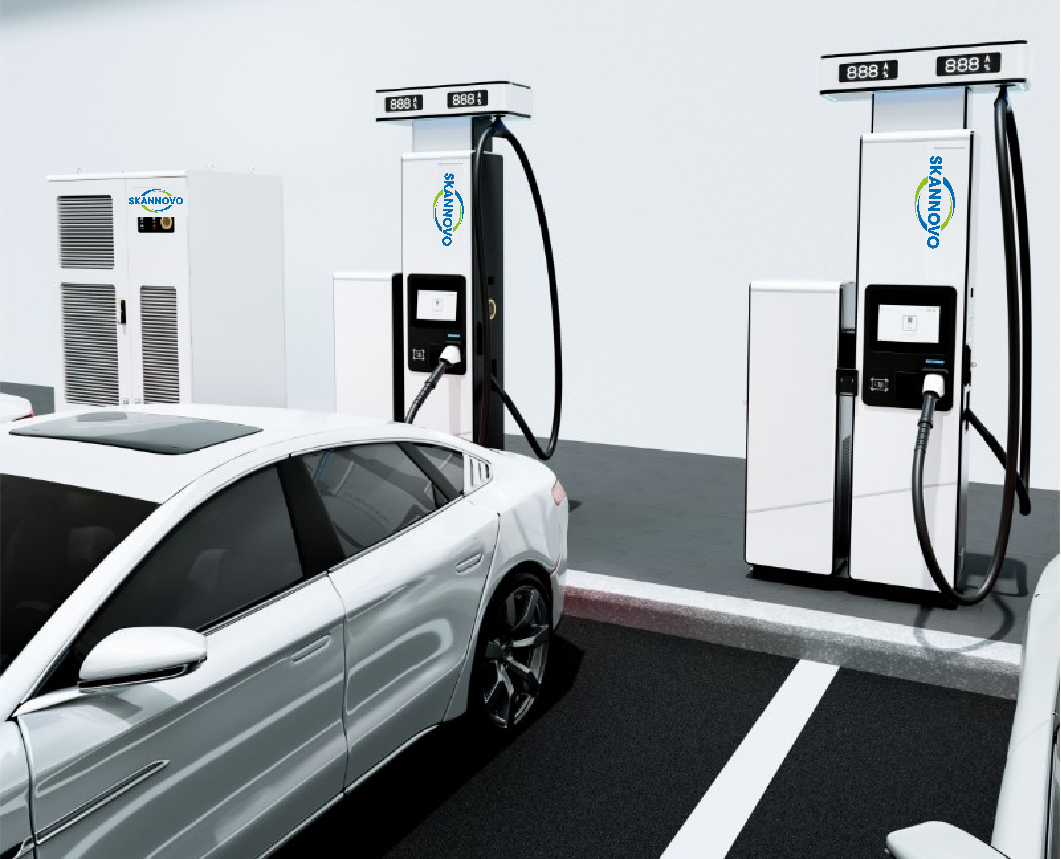

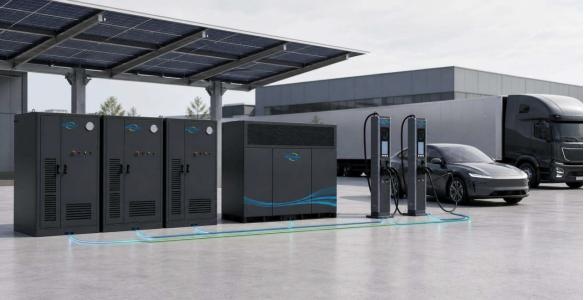

The DC charging station satellite system has a central power hub with a few distributed charging terminals. This provides good flexibility for ground installation and planning. It connects with DC energy supply such as battery energy storage system and provides an advanced charging solution for electrical vehicles and machineries. It comes with various protection mechanisms to ensure safety in the charging process. It provides 4G and Ethernet connectivity and supports OCPP for easy integration into any charging service operator. A color display provides real-time user-friendly charging information.

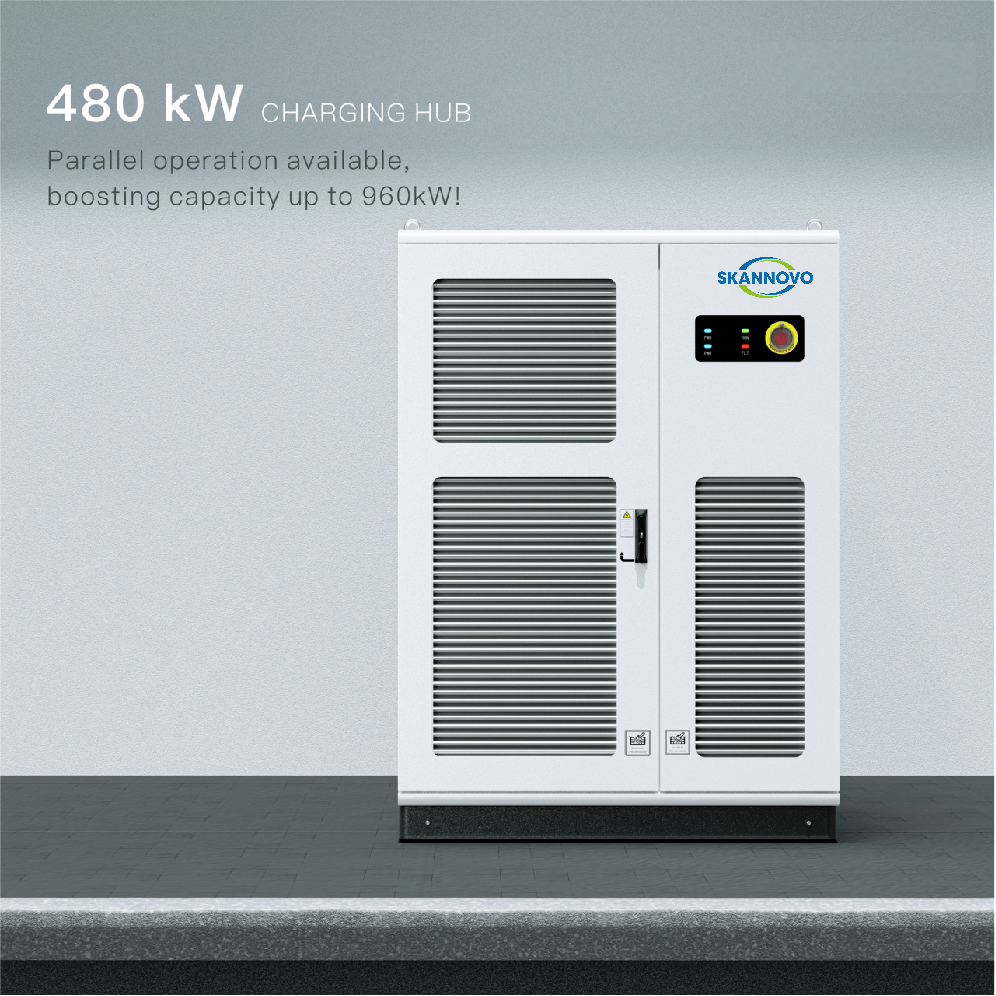

A central power hub is a device that combines multiple sets of power modules to provide large capacity and reliable power. Under the control of the charging circuit, the charging hub can be used for efficient charge distribution.
A charging terminal is a simplified device that can directly discharge power into the charging vehicle. Multiple charging terminals are combined with a central power hub for optimization of space and performance in the distribution process.

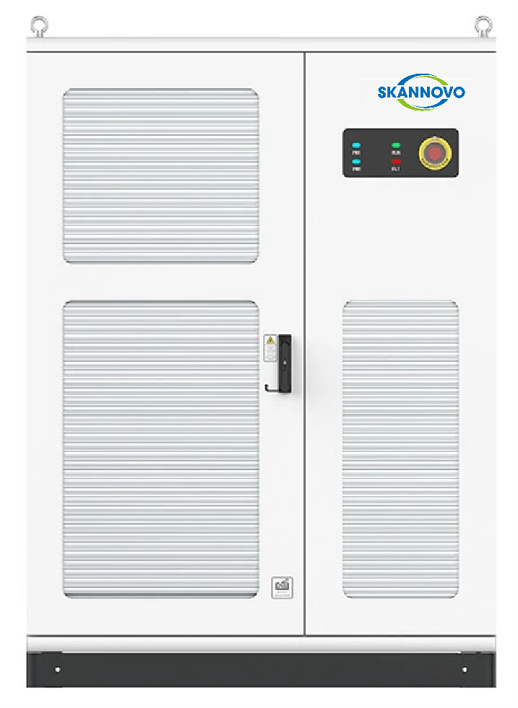

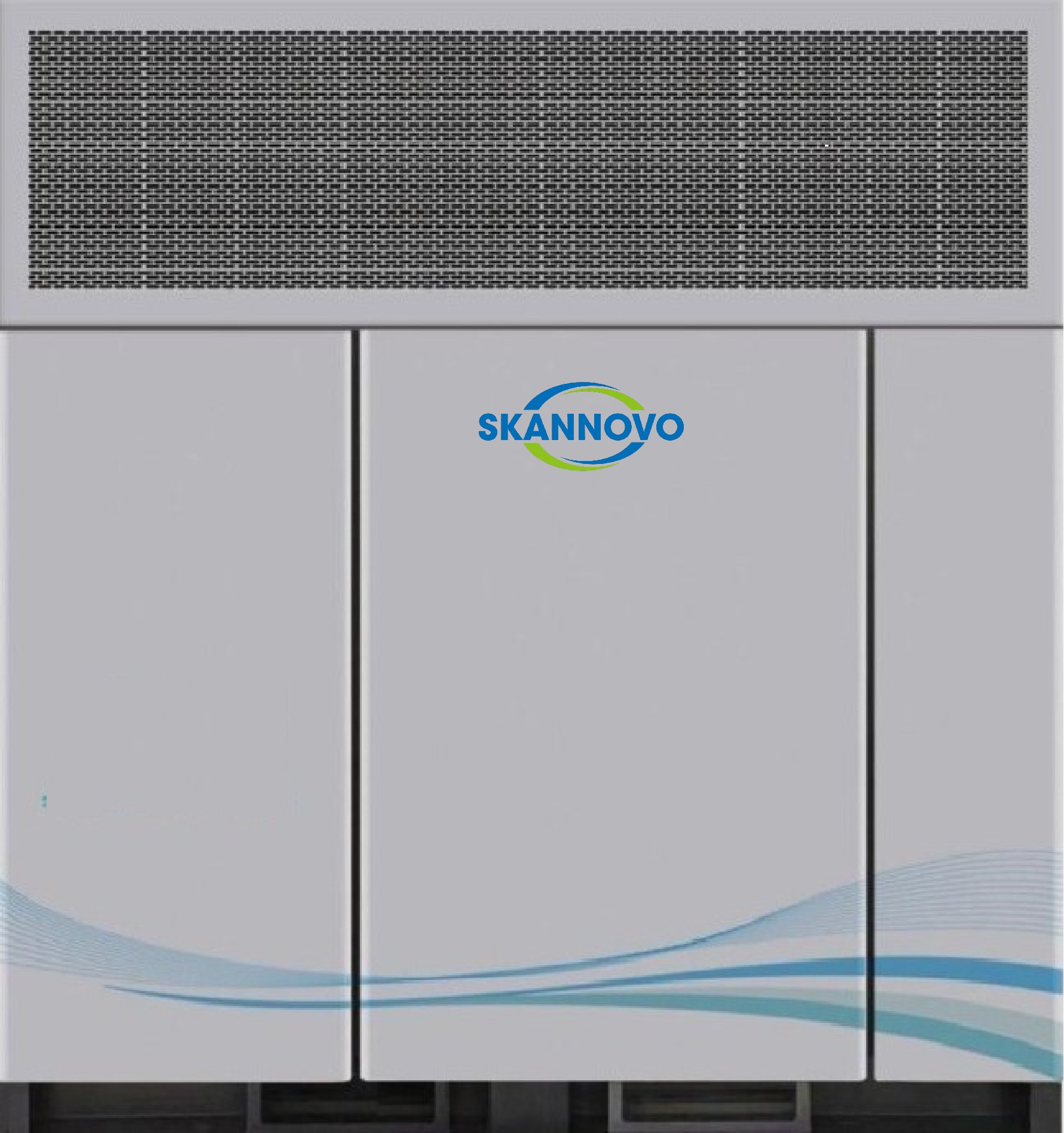

Central power hub with DC input
Parameter | Value |
Rated power | 360kW |
DC/DC charging | 360kW, air cooling, WinLine |
Voltage DC input | 200~1500VDC |
Voltage DC output | 200~1500VDC |
AC/DC V2G | 62.5kW, air cooling, Infypower |
Voltage DC side | 200~1000VDC |
Voltage AC side | 3~400VAC |
No of DC output circuits | 4~20 |
Current per output circuit | <600A |
Efficiency | ≥95% |
Installation | Ground installed |
IP rating | IP65 |
Operating temperature | -35°C ~ +55°C |
Cooling method | Air cooling |
Noise | ≤70 dB |
Relative humidity | 5% ~ 95% |
Dimension | 2000x1072x1998mm |
Corrosion protection | C5 |
Color choice | Black |
Control board | JC Tech |
Charging terminals
Booster Terminal
Parameter | Value |
Terminal type | Booster terminal |
No of input circuits | 1 |
Connector | CCS2 |
Number of charging guns | 2 |
Cooling method | Air cooling |
Output current | <380A |
Central and terminal communication | CAN bus |
Charging standards | IEC 61851-23, ISO 15118-2 |
Output voltage | 150~1000VDC |
Output power per pistol | Evenly distributed within, maximum power limiting |
Installation | Ground |
HMI | 7-inch touch screen |
Charging options | Automatic full, fixed energy, fixed money, fixed time |
Payment methods | RFID card, Scan code, VIN kod, (Payment terminal is optional) |
Network connection | 4G, Ethernet |
Network communication protocol | OCPP 2.0.1 |
Charging standards (2) | IEC 61851-23, ISO 15118-20 |
IP rating | IP 54 |
Operating temperature | -35°C ~ +55°C |
Noise | ≤50 dB |
Relative humidity | 5% ~ 95% |
Safety and protection | Overload protection, short circuit protection, current leakage protection, lightning surge protection, grounding protection, anti-static protection, over and under voltage protection, over and under temperature protection, emergency stop, insulation control |
Cable management | Cable booster on the top |
Support functions | V2G, Plug & Charge, Smart Charging |

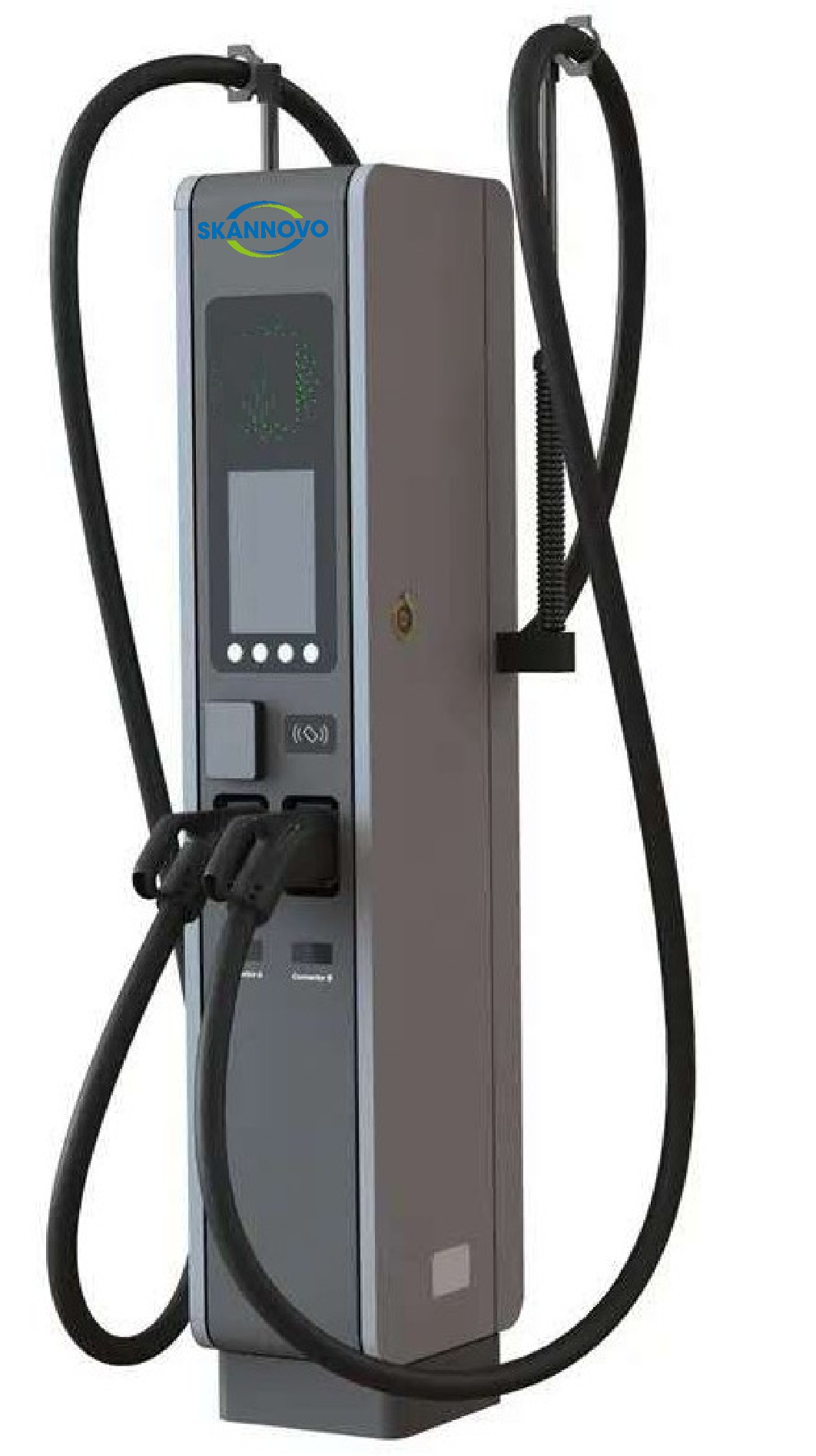

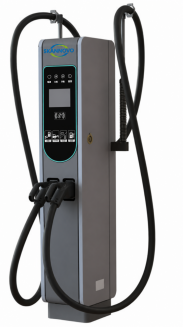

MCS Terminal
Parameter | Value |
Terminal type | MCS terminal |
No of input circuits | 3 |
Connector | 1xMCS, 1xCCS2 |
Number of charging guns | 2 |
Cooling method | Oil cooling |
Output current | <1500A |
Central and terminal communication | CAN bus |
Charging standards | IEC 61851-23-3, ISO 15118-20 |
Output voltage | 150~1000VDC |
Output power per pistol | Evenly distributed within, maximum power limiting |
Installation | Ground |
HMI | 7-inch touch screen |
Charging options | Automatic full, fixed energy, fixed money, fixed time |
Payment methods | RFID card, Scan code, VIN kod, (Payment terminal is optional) |
Network connection | 4G, Ethernet |
Network communication protocol | OCPP 2.0.1 |
Charging standards (2) | IEC 61851-23, ISO 15118-20 |
IP rating | IP 54 |
Operating temperature | -35°C ~ +55°C |
Noise | ≤50 dB |
Relative humidity | 5% ~ 95% |
Safety and protection | Overload protection, short circuit protection, current leakage protection, lightning surge protection, grounding protection, anti-static protection, over and under voltage protection, over and under temperature protection, emergency stop, insulation control |
Cable management | Cable booster on the top |
Support functions | V2G, Plug & Charge, Smart Charging, MCS |
