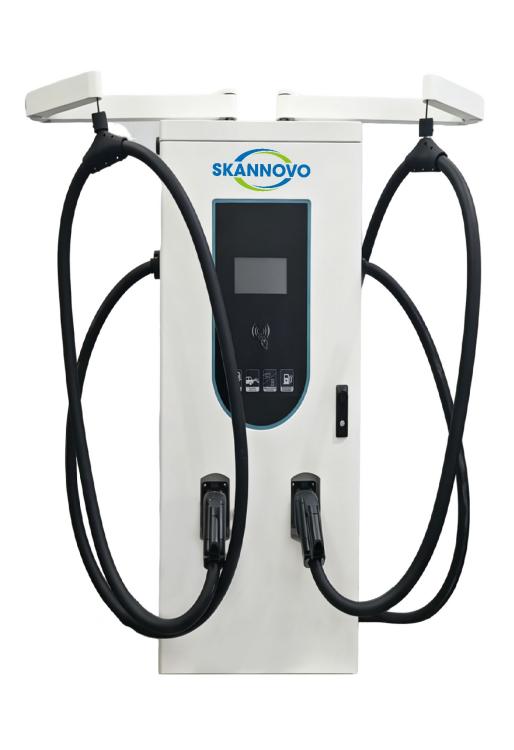

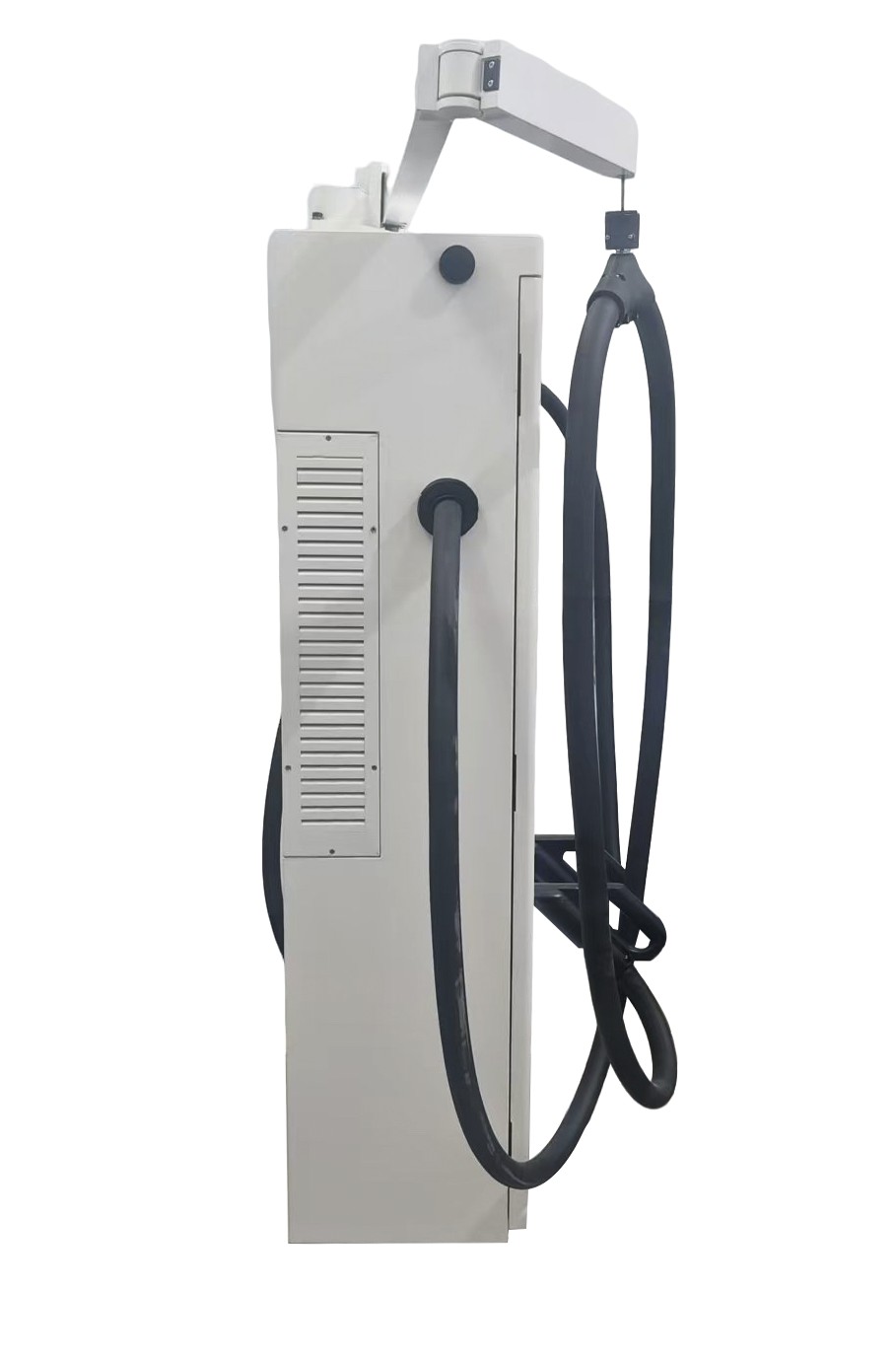

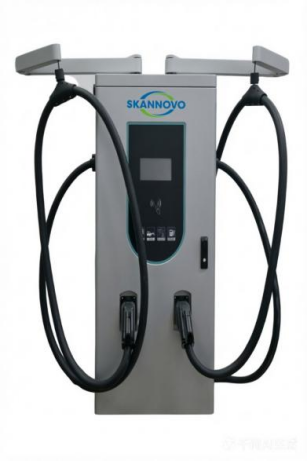

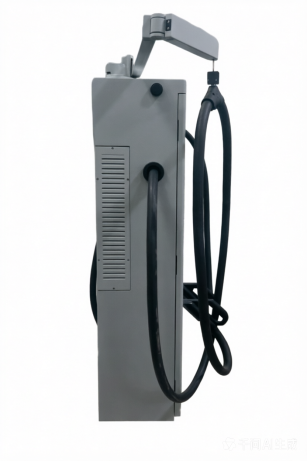

The fast EV charger connects with AC electric grid and provides an advanced charging solution for electrical vehicles and machineries. It comes with various protection mechanisms to ensure safety in the charging process. It provides network connectivity and supports OCPP for easy integration into any charging service platform. A color display provides real-time user-friendly charging information.
Product model | Skn-dc60 |
Rated power | 60kw |
Input voltage | 3~ 400VAC |
Input frequency | 50/60 Hz |
Input current | <100A |
Input connector | 3P+1N+1PE |
Output voltage | 150~1000VDC |
Output current | <200A |
No of charging pistols | 2 |
Output power per pistol | Evenly distributed within, maximum power limiting |
Charging connector type | CCS2 |

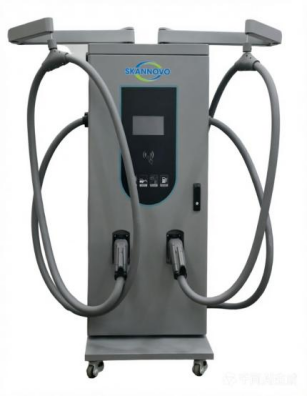

Installation | Ground installed or Mobile |
HMI | 7-inch touch screen |
Charging options | Automatic full, fixed energy, fixed money, fixed time |
Payment methods | RFID card, Scan code, VIN kod, (Payment terminal is optional) |
Network connection | 4G, (Ethernet is optional) |
Network communication protocol | OCPP 1.6J |
Charging standards | IEC 61851-23, ISO 15118-2 |
IP rating | IP 54 |
Operating temperature | -35°C ~ +55°C |
Cooling method | Air cooling |
Noise | ≤ 70 dB |
Relative humidity | 5% ~ 95% |
Safety and protection | overload protection, short circuit protection, current leakage protection, lightning surge protection, grounding protection, anti-static protection, over and under voltage protection, over and under temperature protection, emergency stop, insulation control |
Cable management | Cable booster on the top |
Dimension | 60x35x140mm |
Weight | 150kg |
