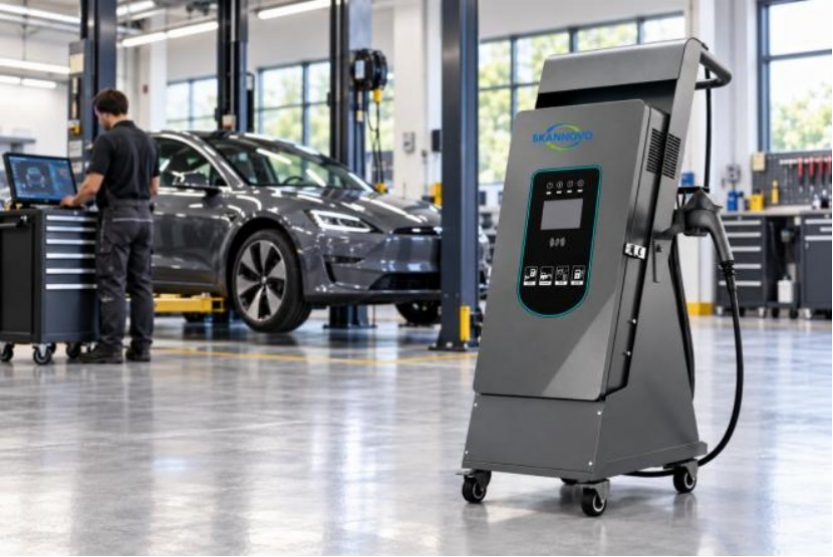

Mobile DC Charging Station 40-80 kW
The DC fast EV charger connects to the AC electric grid and provides an advanced charging solution for electrical vehicles and machinery. It comes with various protection mechanisms to ensure safety in the charging process. It provides 4G and Ethernet connectivity and supports OCPP for easy integration with any charging service operator. A color display provides real-time user-friendly charging information.
1 Technical specification
Parameter | 40-80 kW mobile DC charger |
Rated power kW | 40~80kW |
Input voltage | 3~ 400VAC |
Input frequency | 50/60 Hz |
Input connector | 3P+N+PE |
Output voltage | 150~1000VDC |
Output current | ≤ 200A |
No of charging connectors | 1 or 2 |
Output power per connector | dynamic power sharing and limiting |
Charging connector type | CCS2 |
Installation | Mobile |
HMI | 7-inch touch screen |
Charging options | full charge, target energy, target money, target time |
Payment methods | RFID card, QR code, APP |
Network connection | 4G, Ethernet |
Communication protocol | OCPP 2.0.1, Modbus RTU/TCP |
Charging standards | IEC 61851-23, ISO 15118-2 |
IP rating | IP54 |
Operating temperature | -35°C ~ +55°C |
Cooling method | Air cooling |
Noise | ≤ 65dB |
Relative humidity | 5% ~ 95% |
Safety and protection | overload protection, short circuit protection, current leakage protection, lightning and surge protection, grounding protection, anti-static protection, over and under voltage protection, over and under temperature protection, emergency stop, insulation control |
2 About Skannovo Energy
Skannovo was founded in Stockholm, Sweden in 2006. Its business covers energy technology and environment technology. Skannovo Energy develops high-power charging and energy storage infrastructure and intelligent energy management. Skannovo integrates Photovoltaic, energy storage, and charging station into products and solutions for microgrid high power charging station, mobile charging, and smart charging such as V2G and V2H. Skannovo’s energy management solution covers smart steering of the energy flow, enabling charging as a public and a private service, efficient and effective maintenance of the micro-grid, support for grid balancing, and uninterruptible power supply.
